Custom Small Bottle Boxes & Small Bottle Packaging
Small bottles are deceptively hard to pack. The product is tiny, the box is tiny, and every millimeter you get wrong shows up immediately. Too loose and the glass rattles around, too tight and the flap wont tuck flat. We run a lot of small bottle packaging at ZEE Packaging and honestly most of the problems we fix are sizing problems, not print problems.
Measure The Cap, Not Just The Bottle
This is the single most common mistake we see. People send us the bottle height and forget the closure.
- Include the cap, pump or dropper in your height measurement
- Measure the widest point, usually the shoulder or the base
- Note if the pump has a reach that extends past the neck
- Tell us if there is a shrink band or seal going on
- Send a physical sample if you are unsure, we will size the small bottle box here
A 2mm error on a large carton is nothing. On a small bottle box it is the difference between a clean tuck and a bulging panel.

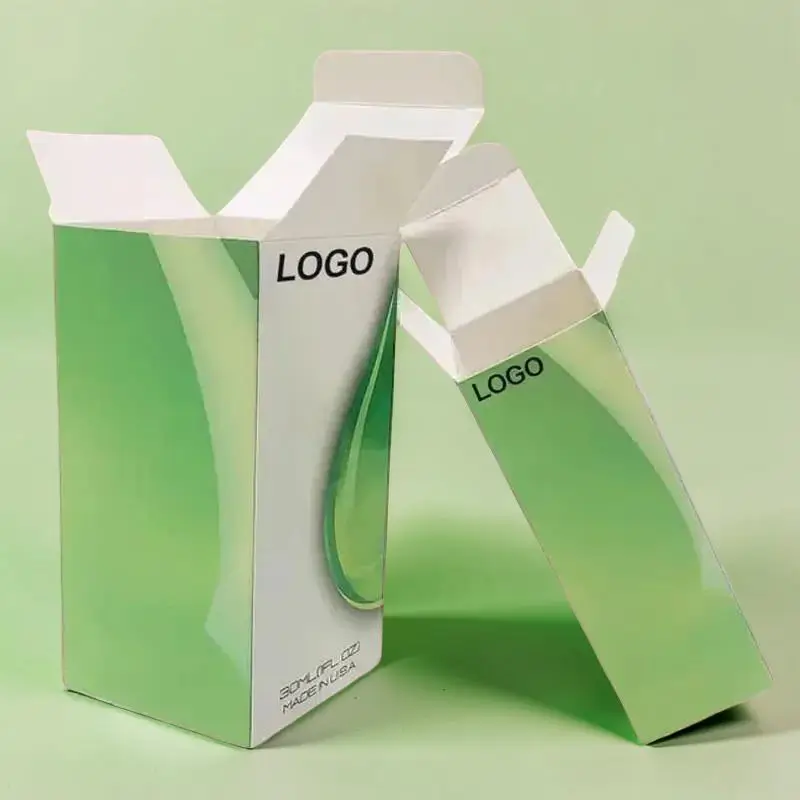

- Reverse tuck end the cheapest and most common small bottle box
- Straight tuck end cleaner front face for retail shelf
- Seal end carton glued, good where tamper evidence matters
- Sleeve over a tray nice for sample and travel set small bottle packaging

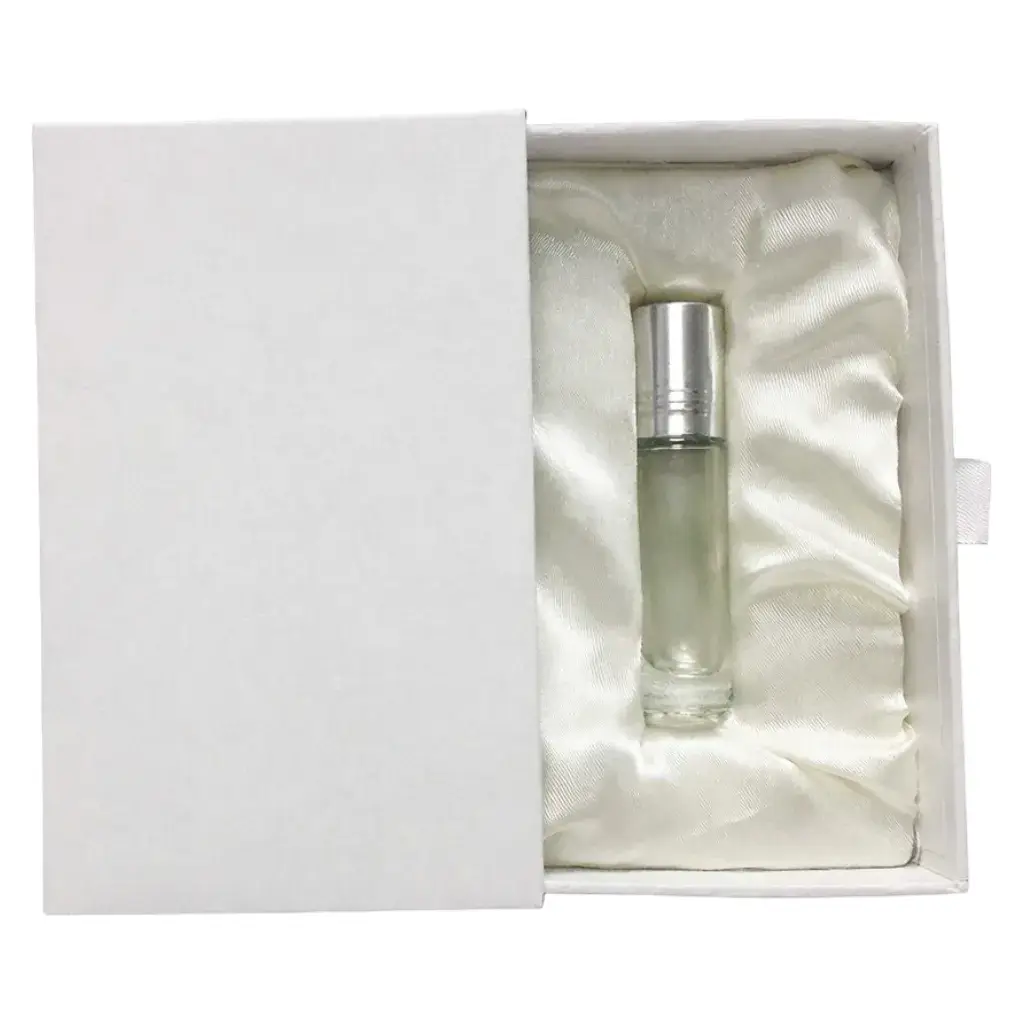

- Rigid box premium serum, perfume and gift line
- Multipack carton two, three or six bottles in one small bottle box
Sizes That Come Up Constantly
- 1.25" x 1.25" x 3" for 10ml roller and essential oil
- 1.5" x 1.5" x 3.5" for 15ml and 30ml dropper bottles
- 1.75" x 1.75" x 4" for 1oz serum, our most ordered small bottle box
- 2" x 2" x 4.5" for 2oz pump bottle
- 2.25" x 2.25" x 5" for 50ml airless pump
- 4" x 2" x 4" for a two bottle small bottle packaging set
Board Weight
Glass is heavy for its size and thin board shows it straight away.
- 18pt to 20pt is our normal recommendation for glass small bottle boxes
- 16pt is fine for plastic and lightweight bottles
- 24pt where the bottle is heavier or the carton is taller
- Rigid greyboard 36pt for premium small bottle packaging
- Kraft board for organic, botanical and apothecary style
- SBS C1S for clean printed retail work
Below 16pt on a glass bottle the base panel starts bowing within days on shelf, and it looks cheap fast.
Keeping The Bottle Still
- Die cut paperboard insert, the neatest solution for a small bottle box
- Corrugated pad in the base for taller bottles
- Foam bed for glass going into export markets
- Divider for multipack small bottle packaging
- Right internal sizing, which honestly solves most of it anyway
Finish Choices
- Soft touch lamination, very popular in beauty small bottle packaging
- Matte or gloss film
- Spot UV over the logo or a botanical detail
- Foil stamping, gold and rose gold both do well here
- Emboss or deboss, subtle on a small panel
- Window patch, though on a small bottle box it eats a lot of print area
Panel Copy To Plan For
- Ingredient list in INCI order
- Net contents in ml and fl oz
- Batch and expiry space, leave it clear for coding
- PAO symbol and warning text
- Barcode with proper quiet zone
Our prepress team checks every panel against the dieline so nothing gets trimmed at the edge.
Greener Options
- Recycled kraft small bottle box with no film
- FSC certified board, certificate on request
- Soy based ink
- Paperboard insert instead of foam
- Right sized small bottle packaging so you ship less air
Working With Us
- 100 unit minimum on any small bottle box design
- Free 3D mockup and flat proof
- Free dieline from our own designer
- 5 to 8 business day urgent turnaround
- Free shipping worldwide
Frequently Asked Questions
How much for a small bottle box?
Rough estimate is $0.25 to $0.80 per unit for folding carton, $0.85 to $2.00 for mailer and $1.90 to $4.50 for rigid at moderate quantity. Foil, insert and window patching add to that. Shipping is included in our price. This is estimate only, so ask our team for a exact quote.
How tight should the fit be?
Snug but not forced. We normally build in 1 to 2mm tolerance so the bottle slides in without scuffing the print inside.
Do we need an insert?
For glass, usually yes. A die cut paperboard insert stops movement and costs very little at volume.
How small can the ingredient text go?
6pt is our floor. Below that it starts filling in on press, especially on uncoated kraft.
Can you print a multipack of three?
Yes, with dividers so each bottle sits in its own cell and nothing knocks together in transit.
Will kraft work with a foil logo?
It works beautifully. Copper and gold foil on natural kraft is one of the best looking combinations in this category.
Can you leave space for batch coding?
We do it as standard. Just tell us which panel your coder hits and we keep it clear of artwork.
