Custom Archive Storage Boxes & Archive Storage Packaging
Archive work is different from everything else we print. Most packaging has a job that lasts weeks. An archive box sits on a shelf for years, gets stacked six high, and has to survive a damp basement or a hot loft without giving up. Nobody sees it, so the whole value is in whether it is still holding together in a decade. We produce a lot of archive storage packaging at ZEE Packaging and longevity drives every decision.
Built For Years, Not Weeks
An archive storage box has to perform long after everyone has forgotten about it.
- Stacking strength matters more than anything else in this category
- Board has to carry load through the walls rather than the lid
- Paper is heavy, a full letter size box runs to thirty pounds or more
- Humidity weakens board over time, so the grade needs to account for it
- Lids that warp let dust in and stop boxes stacking square
- Handle cuts need reinforcement or they tear after a few moves
Most failures we get asked to solve are boxes that were fine on day one and collapsed after two years under load.
Acid Free Matters For Some Content
Worth knowing which of your material actually needs it.
- Standard corrugated is fine for ordinary business records
- Acid free and lignin free board matters for photographs and negatives
- Legal documents intended for permanent retention benefit from it
- Textiles, certificates and artwork need buffered board
- Ordinary board can yellow and embrittle paper over decades
- Tell us the content and we advise which grade fits
We are honest about this rather than upselling everyone to archival grade when standard board does the job perfectly well.

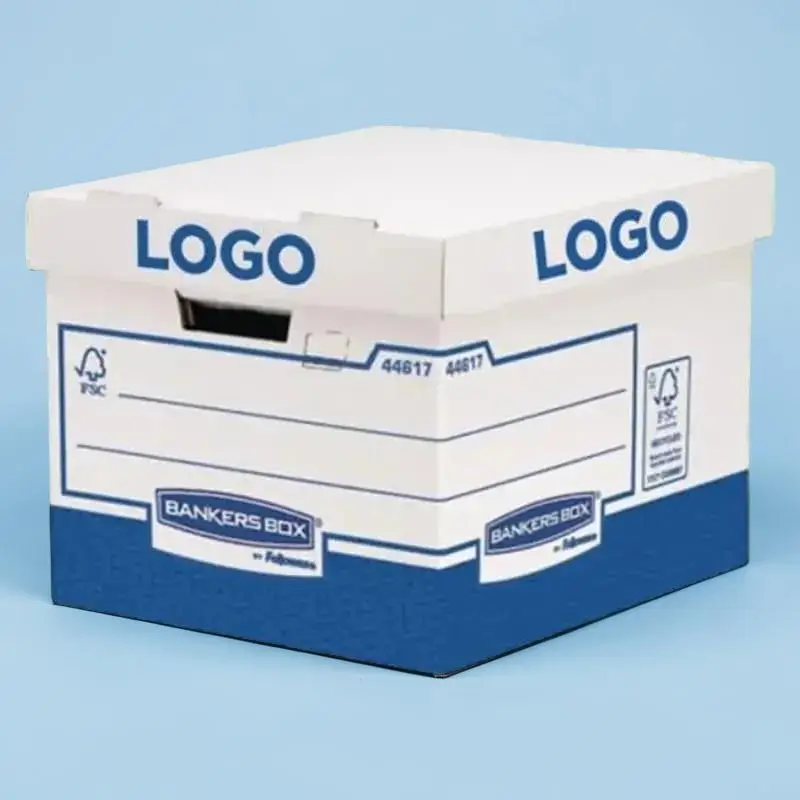

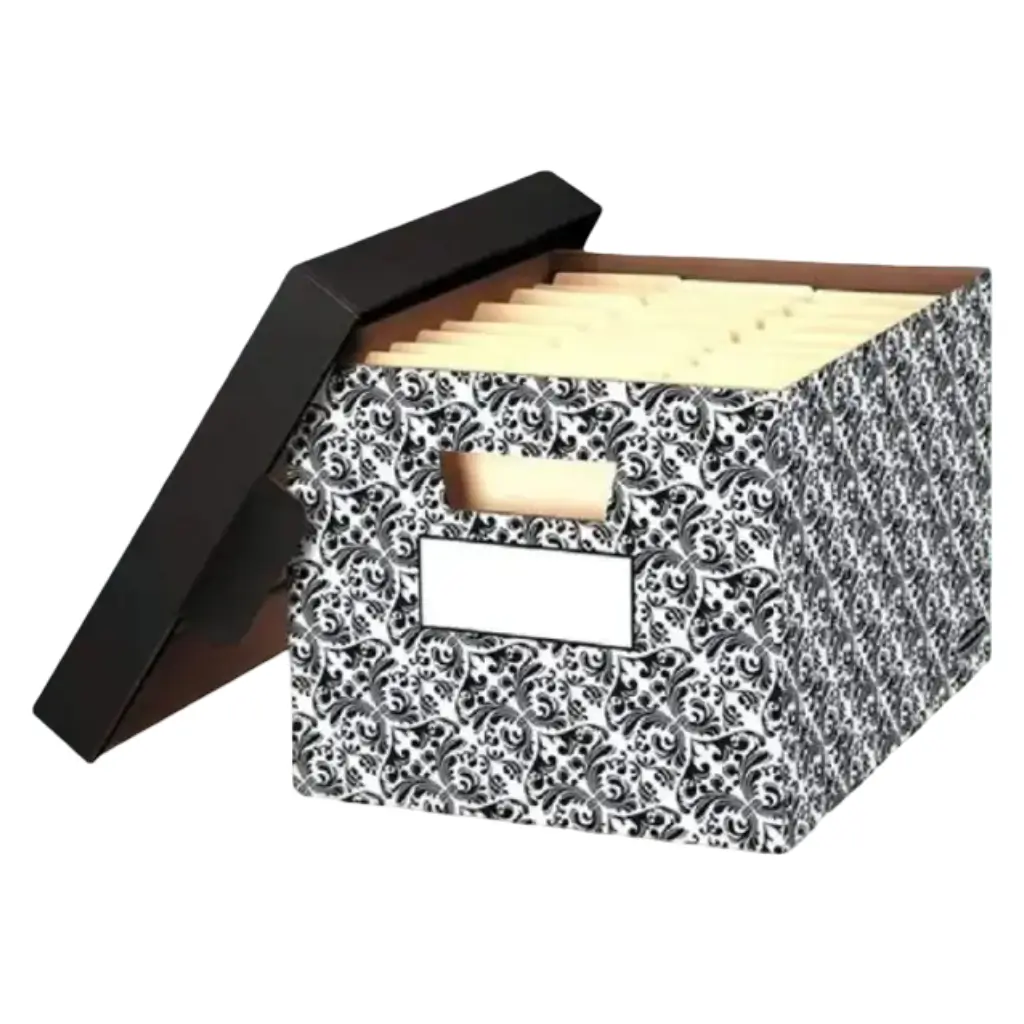

- Lift off lid with a separate base the classic archive storage box

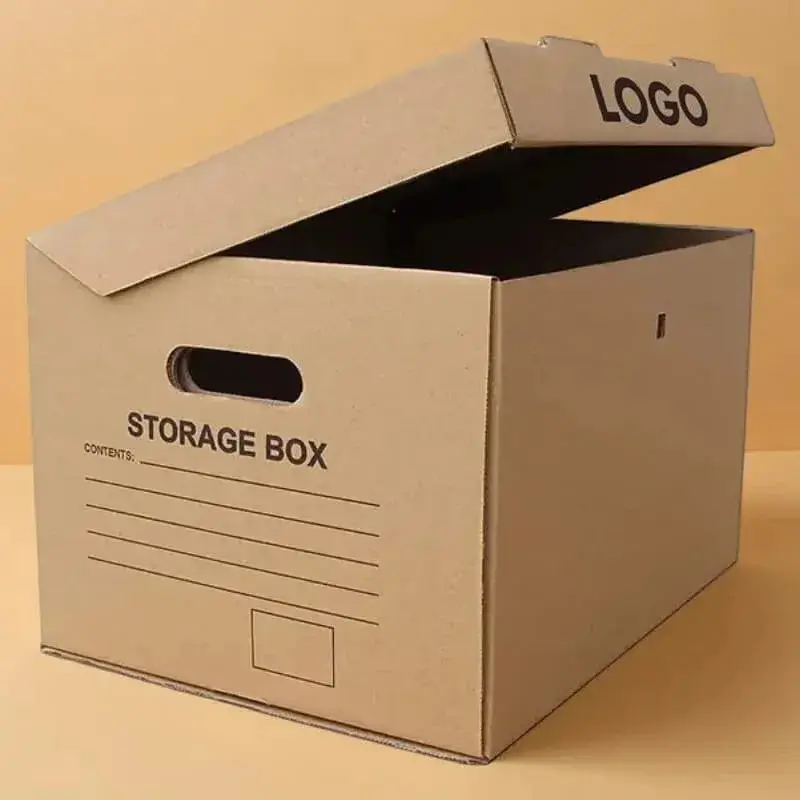

- Attached hinged lid quicker to access, one less piece to lose
- Letter and legal size record carton standard office archive storage packaging
- Flat document and map box for oversized items stored horizontally
- Photograph and negative box smaller, in archival grade
- Transfer case with handles for moving between sites
Sizes We Print Regular
Every archive storage box is built to your need, though these run often:
- 15" x 12" x 10" for letter size records
- 24" x 12" x 10" for legal size files
- 16" x 12" x 12" for a general storage carton
- 20" x 16" x 3" for flat documents and certificates
- 12" x 10" x 5" for photographs and negatives
- 32" x 6" x 6" for rolled plans and drawings
Measure your file thickness rather than the folder, since files expand once they are full.
Board And Load Rating
- Double wall corrugated for anything stacked more than three high
- B flute single wall for lighter, low stack applications
- 200lb test or higher on record cartons
- Reinforced corner construction where load concentrates
- Kraft finish, since these rarely need decorative print
- Acid free and lignin free grades where content demands it
We would rather specify one grade up than have a client restack a collapsed shelf two years from now.
Labelling And Retrieval
The best archive storage packaging is the kind you can find things in.
- Printed label panel on the short end for shelf visibility
- Space for a retention date and destruction date
- Barcode area for scanning into a records system
- Department or client field
- Consistent label position across the range so shelves read easily
- Leave the panel uncoated so pen and marker actually work on it
Lower Impact Choices
- Recycled corrugated, standard across most grades here
- FSC certified board, certificate available on request
- Soy based ink for printed panels
- No lamination, so boxes recycle at end of life
- Reusable construction, since these get emptied and refilled
- Right sized cartons so you store more per shelf metre
How An Order Runs With Us
- 100 unit minimum, so a small practice can order sensibly
- Free 3D mockup and flat proof before anything prints
- Free dieline drawn by our own designer
- Physical sample on request to test stack and fit
- Urgent turnaround at 5 to 8 business days
- Free shipping worldwide with nothing hidden
Frequently Asked Questions
How much is an archive storage box?
Rough estimate is $0.90 to $2.20 per unit for a single wall record carton, $1.60 to $3.60 for double wall and $3.00 to $7.00 for archival grade at moderate quantity. Volume moves it considerably. Shipping is included in our price. This is estimate only, so ask our team for a exact quote.
How high can these be stacked?
Double wall handles six high comfortably when the boxes are square and properly filled. Single wall we would keep to three, and less in a humid environment.
Do we need acid free board?
Only for content you are keeping permanently, particularly photographs, negatives and textiles. Ordinary business records are fine on standard board.
Will they survive a damp storeroom?
Board weakens as humidity rises, so we would specify double wall for anything below ground. No paperboard performs well in genuinely wet conditions.
How much is an archive storage box?
Rough estimate is $0.90 to $2.20 per unit for a single wall record carton, $1.60 to $3.60 for double wall and $3.00 to $7.00 for archival grade at moderate quantity. Volume moves it considerably. Shipping is included in our price. This is estimate only, so ask our team for a exact quote.
Can you print our logo and label fields?
Yes. Most clients order plain kraft with a printed label panel, which keeps the cost low and makes retrieval much easier.
Hinged lid or lift off?
Lift off stacks better and is stronger. Hinged is faster to access and you cannot mislay the lid, so it depends how often you retrieve.
Do you supply handle cuts?
We do, reinforced. An unreinforced handle tears within a few moves once the box is fully loaded.
